PN:90SF01U1-M00100

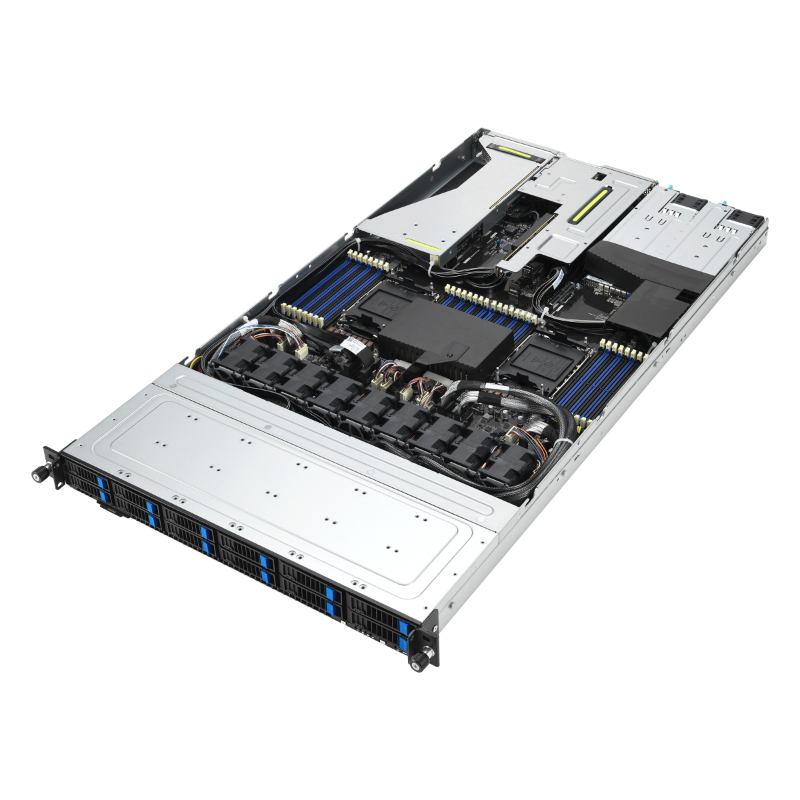

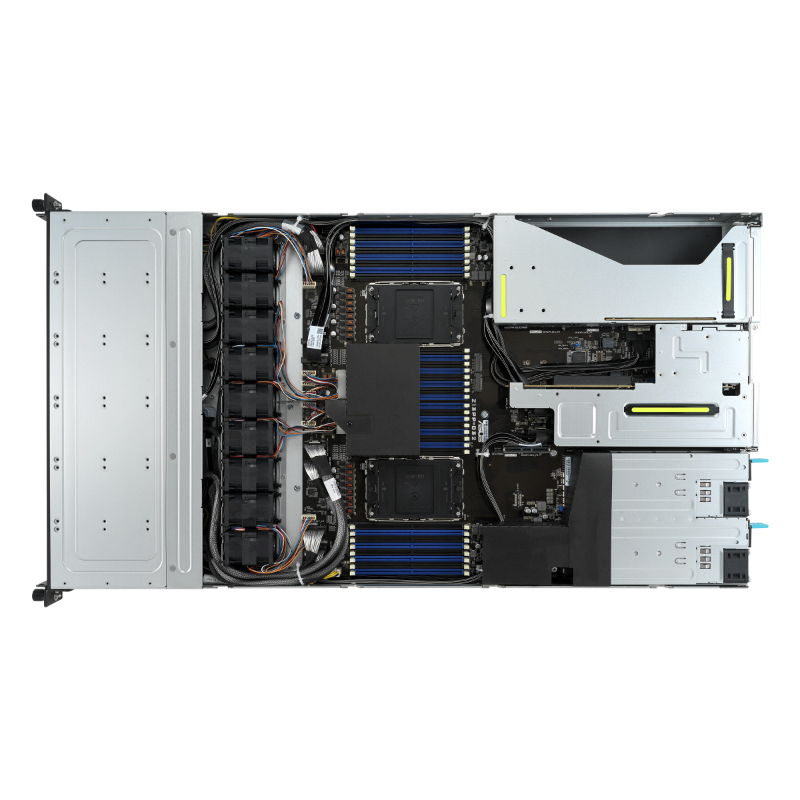

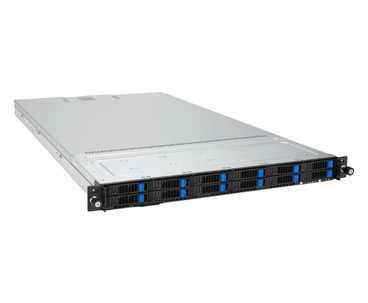

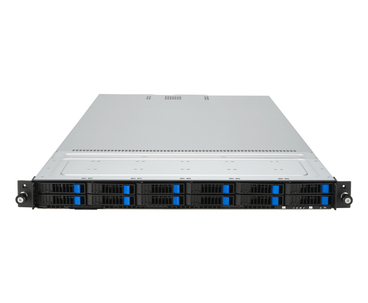

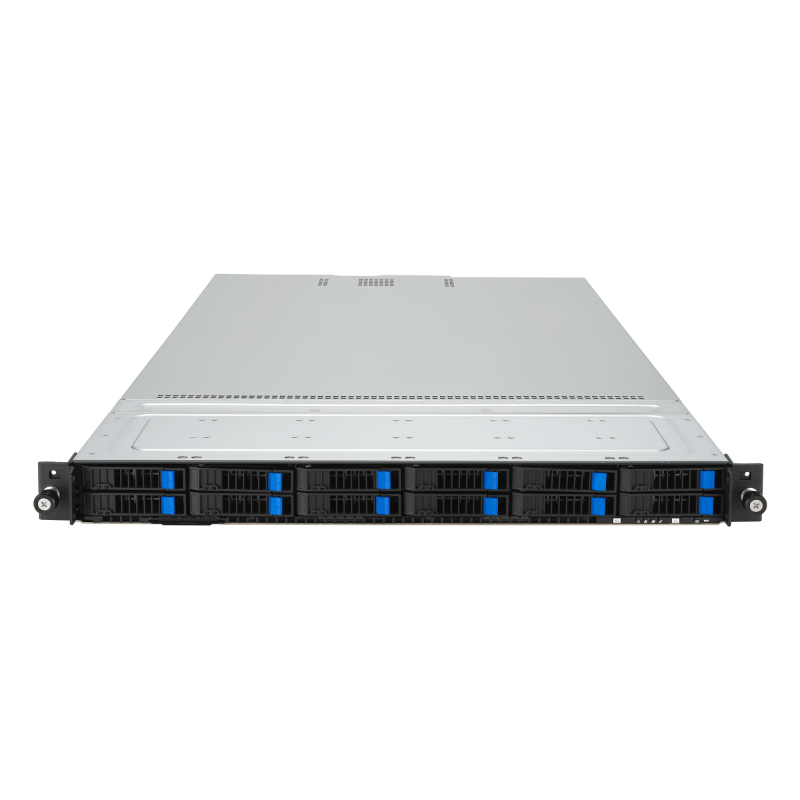

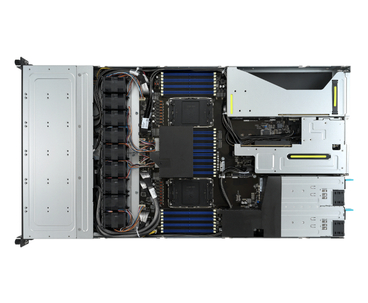

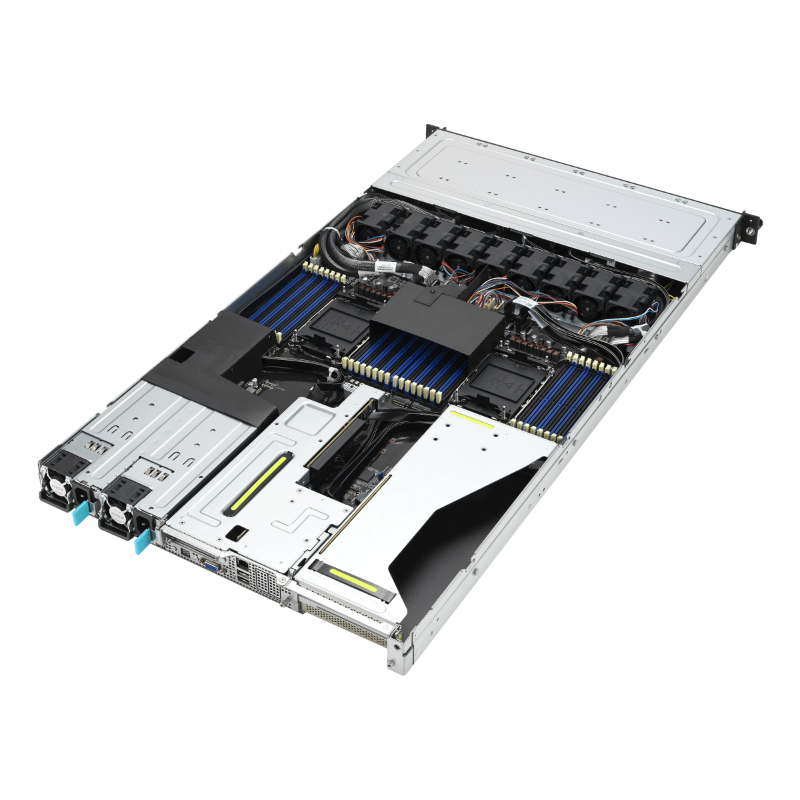

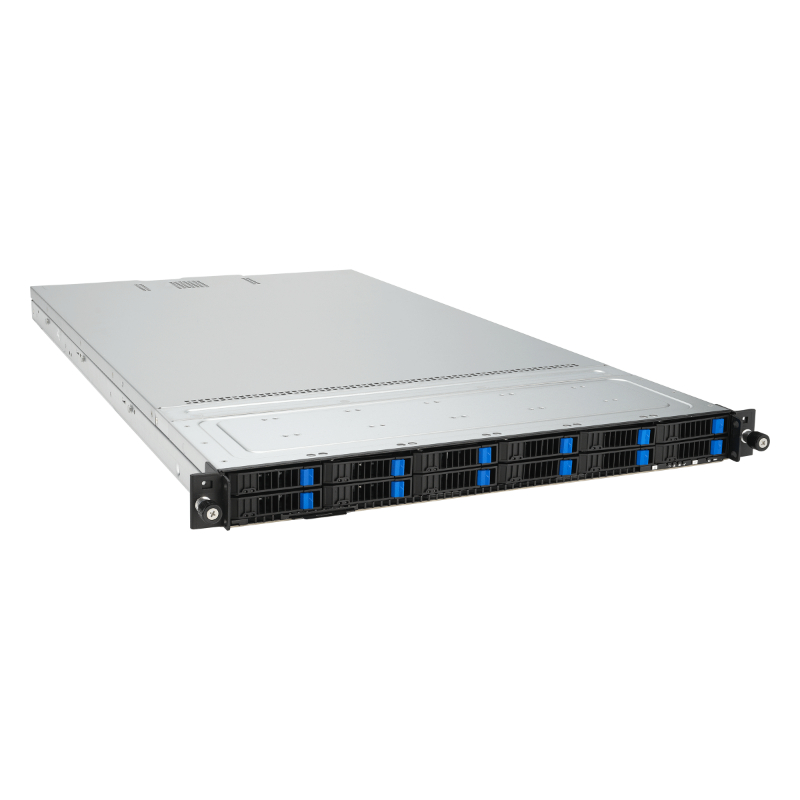

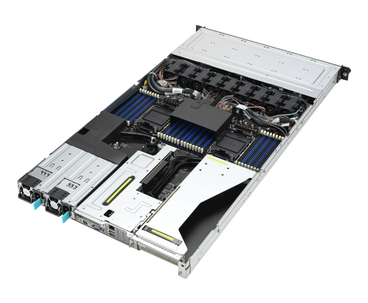

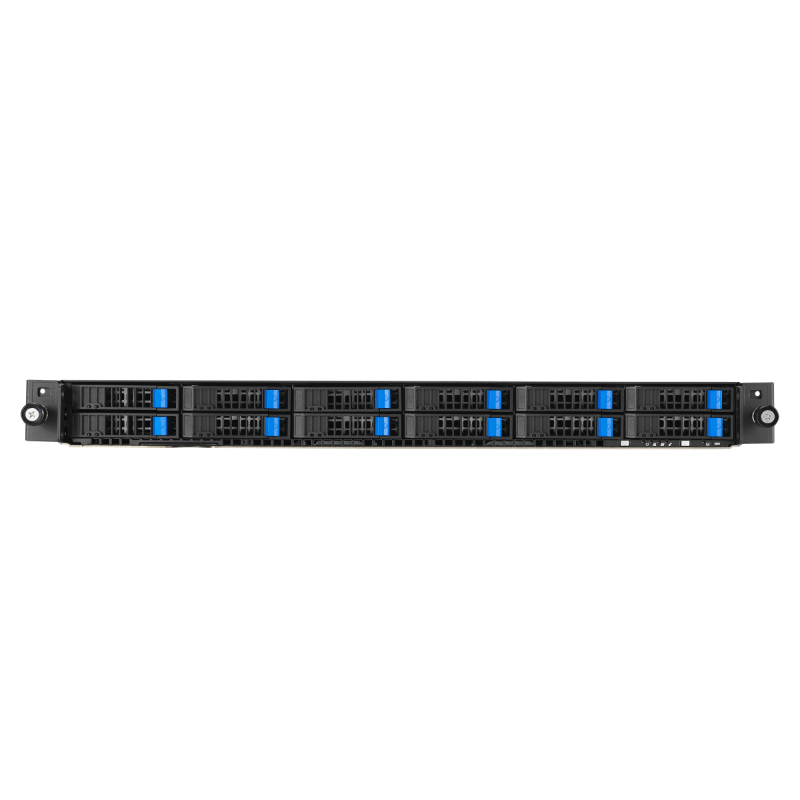

SERVIDOR ASUS RS700-E11-RS12U
LGA 4677/ C741/ Aspeed AST2600/ VGA/ 1U
PN:90SF01U1-M00100
SERVIDOR ASUS RS700-E11-RS12U
LGA 4677/ C741/ Aspeed AST2600/ VGA/ 1U
- ●Con Ventilador: Si
- ●Grafica, Memoria Dedicada: 64Mb
- ●Gráfica Dedicada: Aspeed AST2600
- ●Imagen Salida: Si
- ●Microprocesador: Intel
- ●Microprocesador Integrado: No
- ●Nº Bancos De Memoria: 32
- ●Nº Conexiones SATA: 12
- ●Tecnologia De Memoria: DDR5 RDIMM
Especificaciones:
Processor / System Bus
Intel®Xeon® Processor Scalable Family
Generation
4th/5th
Core Logic
Intel® C741 Chipset
Memory
Total slot:
32 (8-channel per CPU, 16 DIMM per CPU)
Capacity:
Maximum up to 4TB
Memory type:
4th: 4800 MHz (1DPC)/ 4400 MHz (2DPC)
5th: 5600/4800 MHz (1DPC)/4400(2DPC)
Memory size:
64GB, 32GB, 16GB RDIMM
256GB, 128GB RDIMM 3DS
* Refer to www.asus.com/support for more information
Expansion Slots
Up to 3+1 PCIe slot
1 x OCP 3.0 or PCIe G5 x16 FHFL
1 x PCIe G5 x16 FHFL
1 x PCIe G5 x8. LP (Internal)
1 x PCIe G5 x16, LP
Storage
12x2.5” NVMe/SATA/SAS* hot-swap bay
(HBA/RAID is required to support SATA/SAS hard drives)

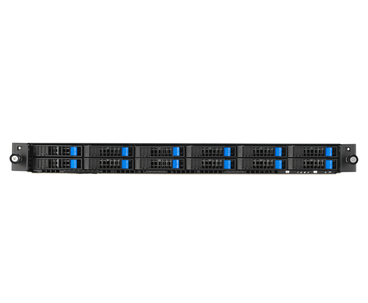

Drive Bays
12 x 2.5" hot-swap bay
2 x M.2 slot
System Fan
9
Networking
4 x1Gbe(Intel I350-AM4) RJ45 port or
2 x 10Gbe(Intel X710-AT2) RJ45 port
Graphic
Aspeed AST2600 64MB

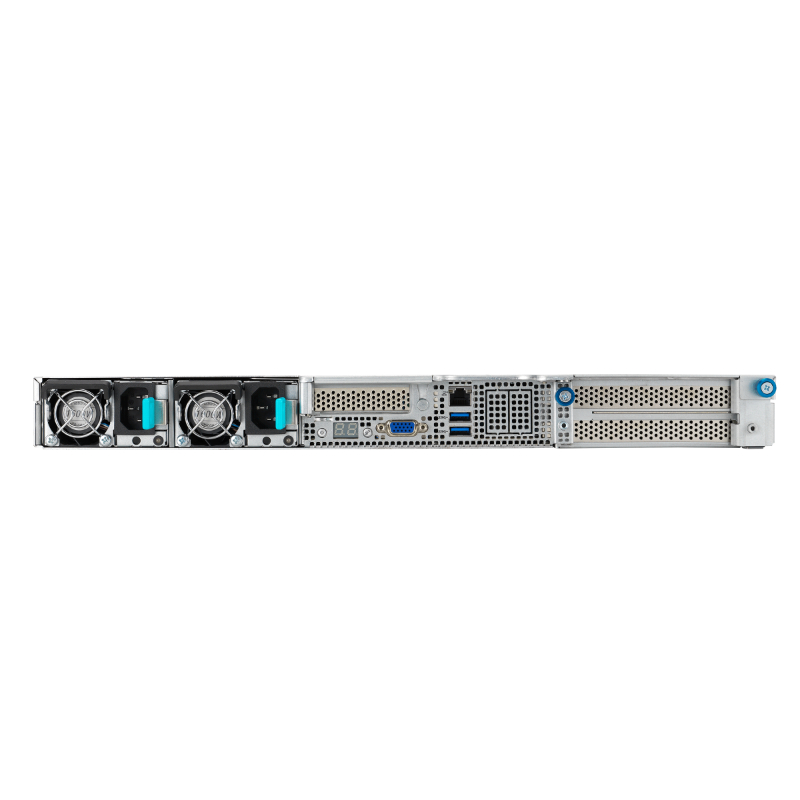

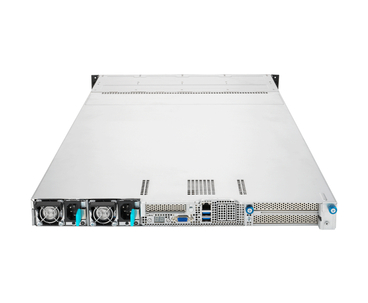

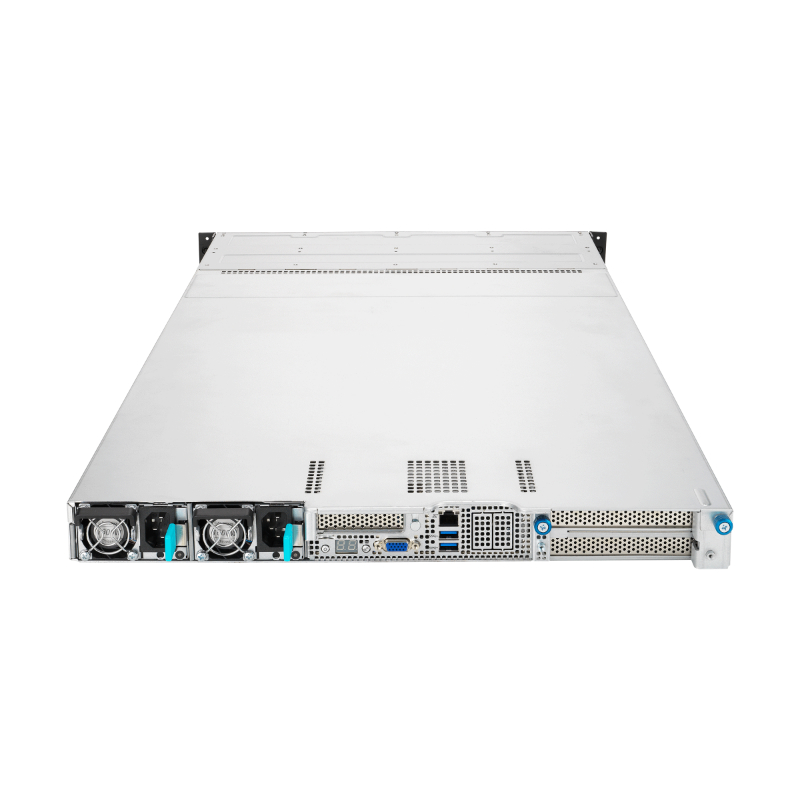

Rear I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
1 x RJ-45 Management LAN port
2 x 10G or 4 x 1G RJ-45 GbE LAN port (optional)
Switch/LED
Front Switch/LED:
1 x Power Switch (w/ LED)
1 x Location Switch (w/ LED)
Dimensions
842.5mm x 439.5mm x 44mm
Form Factor
1U
Weight
22.56kg
Power Supply
1+1 Redundant AC: 1200W/1600W 80 PLUS Platinum/Titanium Power Supply
CPU Heatsink/ Cooler
Standard/ EVAC Heatsink
PN:90SF01U1-M00100
SERVIDOR ASUS RS700-E11-RS12U
LGA 4677/ C741/ Aspeed AST2600/ VGA/ 1U
